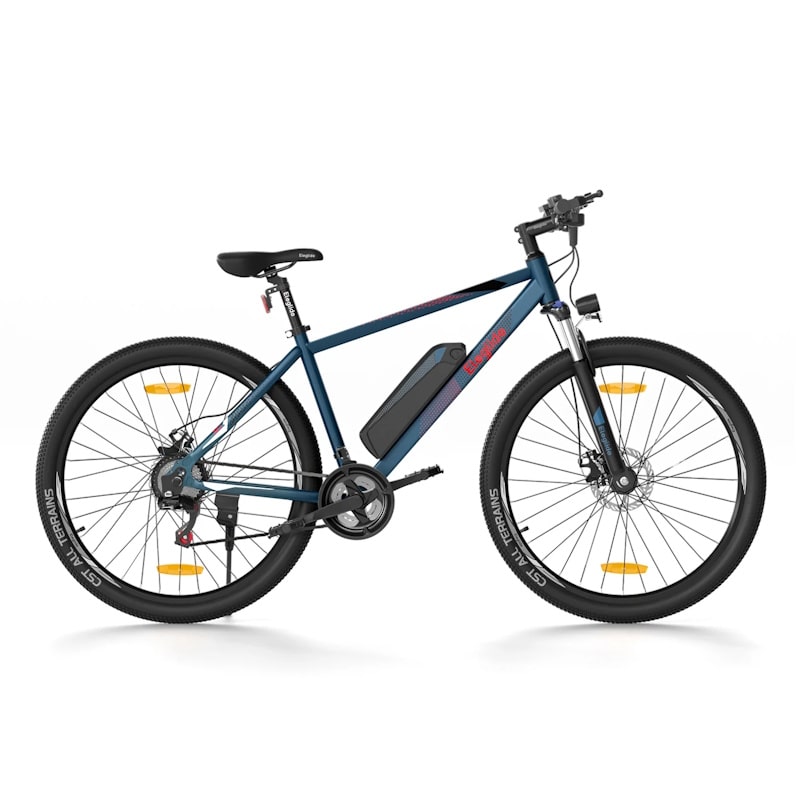

Eleglide M1 Mountain E-Bike 250W 15.5mph Top Speed EAPC

About the Eleglide M1 E-Bike

Discover a new way to ride with the Eleglide M1 E-Bike - perfect for commuting, weekend adventures, and off-road exploring. This versatile electric bike gives you the extra boost you need to tackle hills with ease, ride further with less effort, and enjoy every journey to the fullest.

With smooth pedal assistance, you'll experience effortless cycling whether you're cruising through town or exploring scenic trails. The M1’s sturdy design and comfortable ride make it a great choice for both new and experienced riders, while its reliable battery ensures you stay on the move for longer.

Ride smarter, go further, and enjoy more with the Eleglide M1—your gateway to stress-free and enjoyable cycling.

Demo Video: Eleglide M1 and M1 Plus

Specifications

• Material: Aluminium Alloy
• Size of Frame: 27.5" x 17"
• Max Range: 65km (Assist Mode)
• Test Condition: The max range is achieved with a 75kg load and a constant speed of 15km/h on flat roads without strong winds at 26°C
• Max. Speed: 25 km/h
• Max. Load: 100 kg
• Slope: 15°
• Motor: 250W 36V, 210 (Max RPM), 45N.M (Max Output Torque), 500W (Max Inst. Power)
• Motor Brand: XOFO Motor
• Battery: 7.8Ah, 36V, 270Wh, with Battery Protection System
• Charger: 100-240V 2A (Input), 42V 2A (Output)
• Charging Time: About 4.5 hours
• Derailleur: 21 Speed Shimano Gear (Front 3, Rear 7)
• Braking System: Dual Disc Brakes & Auto Power-off Design
• Front & Rear Brake: Mechanical Disc-160mm Rotor
• Suspension: Hydraulic Damping with Lockout
• Fork: Hydraulic with Lockout - 100mm travel
• Tyres: 27.5" x 2.1" CST Pneumatic Rubber Tyres, 45-65PSI (Tyre Pressure)
• Chain Plate: 42T 34T 24T
• Light: LED, 1.65W, 20° (Beam Angle), 0.5㎡ (Irradiated Area)
• Display: Intelligent LCD Display
• Waterproof Rate: IPX4
• Recommended Height of Cyclists: 160-185cm (5.25ft-6.07ft)
• Speed Modes: (1) 12 km/h, (2) 16 km/h, (3) 20 km/h, (4) 23 km/h, (5) 25 km/h
• Weight: 21.3kg (Net Weight), 26g (Gross Weight)

• Height of Saddle (From the Ground): 830-1030mm (33"-40.5")
• Length of Handlebar: 680mm (26.8")

Package Contents

• 1 x M1 E-Bike
• 2 x Pedal
• 1 x Charger
• 1 x Tool Kit
• 2 x Key
• 1 x User Manual
• 2 x Spoke Reflector
• 1 x Rear Reflector

User Guide

• Download the Eleglide M1/M1 Plus User Guide
