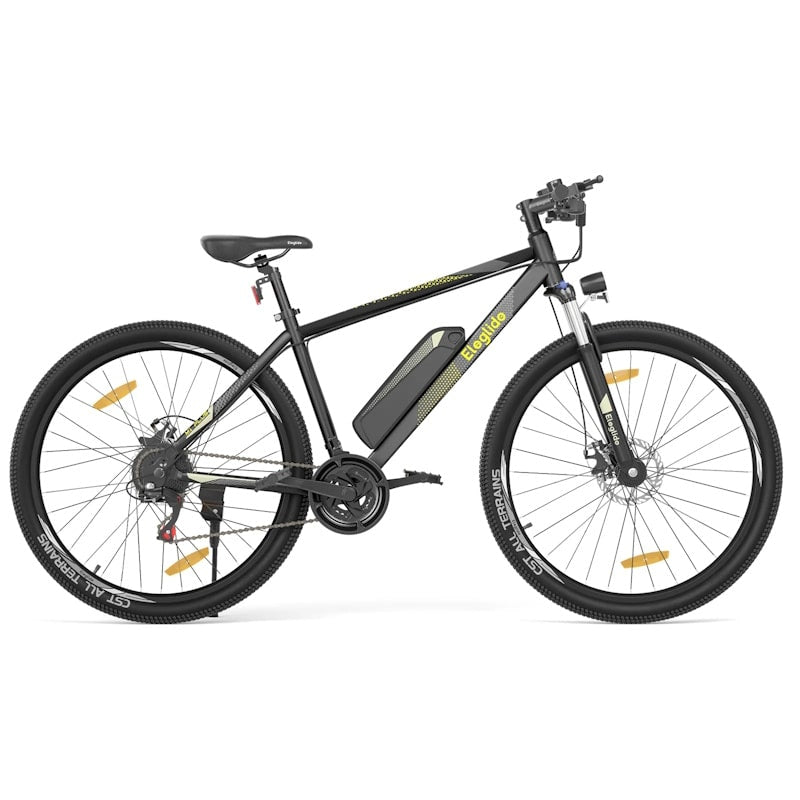

Eleglide M1 Plus Mountain E-Bike 250W 15.5mph Top Speed EAPC

About the Eleglide M1 Plus E-Bike

Enjoy the freedom of the open road and the thrill of the trails with the Eleglide M1 Plus Mountain E-Bike. Whether you're commuting, exploring countryside paths, or tackling rugged terrain, this electric bike provides the perfect balance of power, comfort, and reliability.

With smooth pedal assistance, you'll glide up hills and cover long distances with ease, making every ride more enjoyable and less tiring.

The M1 Plus offers a comfortable and stable ride, absorbing bumps along the way so you can focus on the journey ahead. Its long-lasting battery ensures you can ride further, while the responsive handling keeps you in control, no matter the terrain.

Demo Video: Eleglide M1 and M1 Plus

Specifications

• Material: Aluminium Alloy
• Size of Frame: 27.5" x 18"
• Max Range: 100km (Assist Mode)
• Test Condition: The max range is achieved with a 75kg load and a constant speed of 15km/h on flat roads without strong winds at 26°C
• Max. Speed: 25 km/h
• Max. Load: 100 kg
• Slope: 15°
• Motor: 250W 36V, 210 (Max RPM), 45N.M (Max Output Torque), 400W (Max Inst. Power)
• Motor Brand: XOFO Motor
• Battery: 13Ah, 36V, 450Wh, with Battery Protection System
• Charger Output: 100-240V 2A (Input), 42V 2A (Output)
• Charging Time: About 7 hours
• Derailleur: 21 Speed Shimano Gear (Front 3, Rear 7)
• Braking System: Dual Disc Brakes & Auto Power-off Design
• Front & Rear Brake: Mechanical Disc-160mm Rotor
• Suspension: Hydraulic Damping with Lockout
• Fork: Hydraulic with Lockout - 100mm travel
• Tyres: 27.5" x 2.1" or 29" x 2.1" (depending on model selected) CST Pneumatic Rubber Tyres, 45-65PSI (Tyre Pressure);
• Chain Plate: 42T 34T 24T
• Light: LED, 1.65W, 20° (Beam Angle), 0.5㎡ (Irradiated Area)
• Display: Intelligent LCD Display
• Waterproof Rate: IPX4
• Recommended Height of Cyclists: 165-195cm (5.41ft-6.4ft)
• Speed Modes: (1) 12 km/h, (2) 16 km/h, (3) 20 km/h, (4) 23 km/h, (5) 25 km/h
• Weight: 27.5" Tyre Model - 21.7kg (Net Weight), 27g (Gross Weight); 29" Tyre Model - 22.8kg (Net Weight), 29.8kg (Gross Weight)

• Height of Saddle (From the Ground): 850-1050mm (33.5"-41.5")
• Length of Handlebar: 680mm (26.8")

Package Contents

• 1 x M1 Plus E-Bike
• 2 x Pedal
• 1 x Charger
• 1 x Tool Kit
• 2 x Key
• 1 x User Manual
• 2 x Spoke Reflector
• 1 x Rear Reflector

User Guide

• Download the Eleglide M1 Plus User Guide
